Name: [KRAMER] VM-4UX
Brand: KRAMER
Price: 1481000 KRW
Availability: InStock

[KRAMER] VM-4UX

1,481,000원

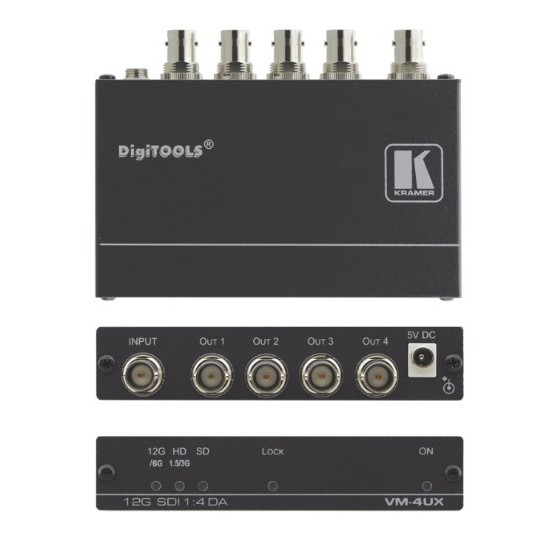

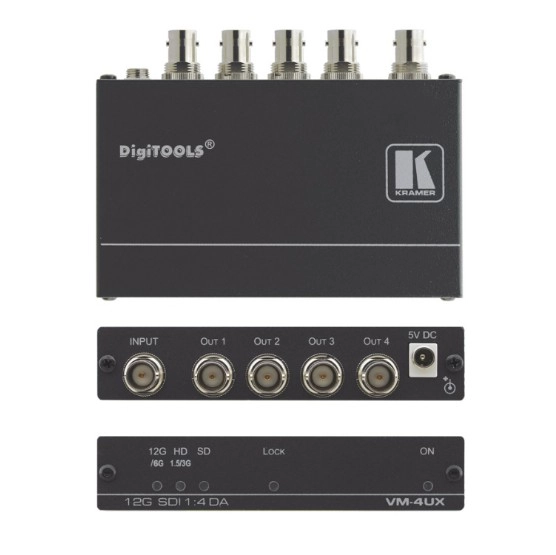

1:4 4K 12G SDI DA

구매하기 장바구니 0

장바구니

구매하기 구매하기

Inputs	1 SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST–2082 (12G–SDI) compliant serial video, 75Ω on a BNC connector
Outputs	4 equalized and reclocked SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST 2082 (12G–SDI), outputs 75Ω on BNC connectors
Cable Equalization Reach	12Gbps: Up to 80m (260ft), 3Gbps and 6Gbps: Up to 100m (330ft), 1.5Gbps: Up to 200m (660ft), SD: Up to 300m (980ft), Note: The above specs apply when using Kramer cables
Video	Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps to 12Gbps data rate
Maximum Output Level	800mVpp /75Ω
Coupling	AC
Standards Compliance	SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI), ST–2082 (12G–SDI)
Power Consumption	5V DC, 250mA
Power Source	5.2V/4A
Enclosure	Tools size, Aluminum type
Cooling	Convection ventilation
Operating Temperature	0° to +40°C (32° to 104°F)
Storage Temperature	–40° to +70°C (–40° to 158°F)
Humidity	10% to 90%, RHL non–condensing
Included Accessories	Power supply, mounting bracket, 2 male BNC 75Ω terminators
Product Dimensions	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
Product Weight	0.2kg (0.4lbs) approx.
Shipping Dimensions	49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H
Shipping Weight	0.7kg (1.5lbs) approx.
