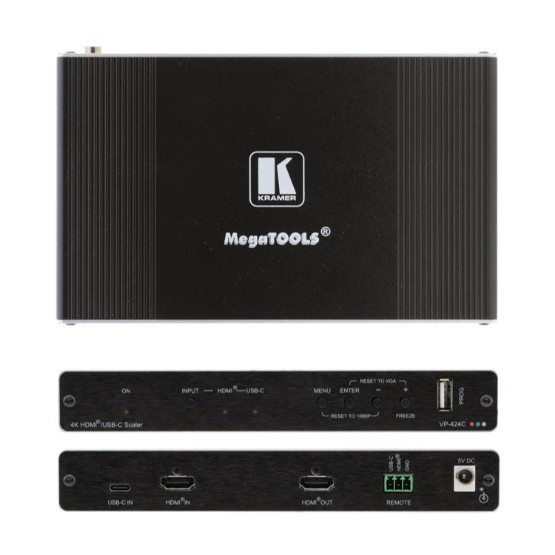

[KRAMER] VP-424C

1,278,000원

18G 4K HDMI ProScale™ Digital Scaler with HDMI and USB–C Inputs

Max. Input Resolution:4K@60Hz (4:4:4)
Max. Data Rate:18Gbps (6Gbps per graphic channel)
HDCP 2.2 & 1.4 compliant
OSD menu and front panel input selection

HDMI | 4K/60 UHD (4:4:4) | HDCP 2.2 compatible

브랜드 KRAMER

배송 방법

택배 · 기본 무료 · 도서산간 배송비 popover

배송 안내

도서산간 지역은 추가비용 5000원(편도기준)이 발생합니다.

구매하기 장바구니 0

구매하기 구매하기

Inputs	1 HDMI: On a female HDMI connector 1 USB-C: On a female USB–C connector (USB3.1, DP Alternate Mode)
Outputs	1 HDMI: On a female HDMI connector
Ports	Contact Closure Switches: On a 3–pin terminal block USB: On a USB–A connector for firmware upgrade
Video	Max. Input Resolution: 4K@60Hz (4:4:4) Max. Data Rate: 18Gbps (6Gbps per graphic channel) Input Resolutions: 480i/576i, 480p/576p, 720p@60/50Hz, 1080i@60/50Hz, 1080p@24/25/30/50/60Hz, 640x480@60/67/72/75/85Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz, 1600x900@60 RB, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60 RB, 2048x1080@24/25/30/50/60Hz, 2560x1600@60 RB, 4K/2K@50/60Hz (4:2:0), 4K/2K@24/25/30/50/60Hz (4:4:4) Output Resolutions: 640x480@60Hz, 720x480p@60Hz, 720x576p@50Hz, 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1280x720p@50/60Hz, 1280x768@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1080p@24/25/30/50/60Hz, 1920x1200 RB@60Hz, 2048x1080@50/60Hz, 2560x1080p@50/60Hz, 2560x1440 RB@60Hz, 2560x1600 RB@60Hz, 4K/2K@24/25/30/50/60Hz Latency: 1–2 frames Content Protection: HDCP 2.2 & 1.4
User Interface	Controls: Input selection and resolution reset front panel buttons, OSD menu Indicators: Selected input and power LEDs
Power	Source: 5V DC Consumption: 1.8A
Enclosure	Size: MegaTOOLS® Type: Aluminum Cooling: Convection ventilation
Environmental Conditions	Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RHL non–condensing
Accessories	Included: Power adapter, bracket set, rubber feet
Product Dimensions	19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H
Product Weight	0.5kg (1.2lbs) approx.
Shipping Dimensions	34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
Shipping Weight	1.1kg (2.4lbs) approx.
