[KRAMER] KIT-500

6,978,000원

5x2 4K60 USB–C/HDMI Extender/Scaler Matrix Kit

AV and USB 3.0 coupled–signals switching
4K60 4:4:4 scaling resolution
Built–in USB–C docking
Remote control and management

HDMI | Ethernet - RJ-45 | HDBaseT | 4K/60 UHD (4:2:0)

브랜드 KRAMER

배송 방법

택배 · 기본 무료 · 도서산간 배송비 popover

배송 안내

도서산간 지역은 추가비용 5000원(편도기준)이 발생합니다.

구매하기 장바구니 0

구매하기 구매하기

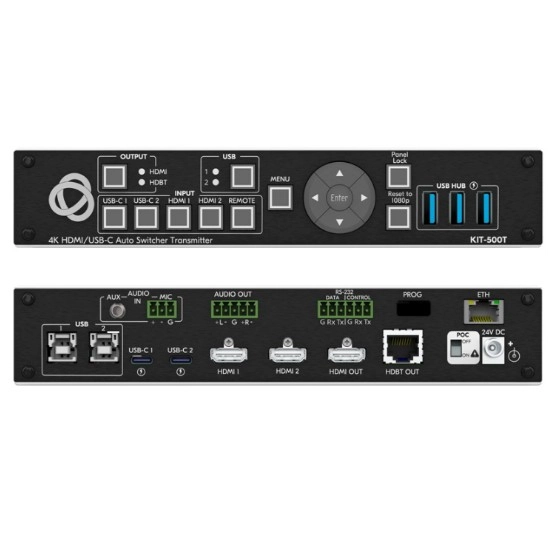

TRANSMITTER	INPUTS 2 HDMI: On female HDMI connectors 2 USB–C: On USB–C female connectors 1 Mic/Unbalanced Stereo Audio: On a 3–pin terminal block connector 1 AUX Unbalanced Stereo Audio: On a 3.5mm mini jack OUTPUTS 1 HDMI: On a female HDMI connector 1 HDBaseT: On an RJ–45 connector 1 Balanced Stereo Audio: On a 5–pin terminal block connector PORTS 1 Ethernet: On an RJ–45 connector 1 Control RS–232: On a 3–pin terminal block connector 1 Data RS–232: On a 3–pin terminal block connector 1 Program USB: On a USB type A connector for firmware upgrade 3 USB (HUB): On USB type A connectors 2 USB (Host): On USB type B connectors Integrated USB Hubs: 2 ANALOG AUDIO Input Coupling: AC Output Coupling: DC Max Input Signal Level: 5.5Vp–p/8dBu Max Output Signal Level: 6Vp–p/8.7dBu Frequency Response: 20Hz to 20kHz ±0.1dB THD+N (A–weighted): 76dB Input Impedance: 14KΩ Output Impedance: 500Ω For Embedded Audio — Number of Supported Channels: Up to 8CH Supported Audio Formats: Dolby, DTS

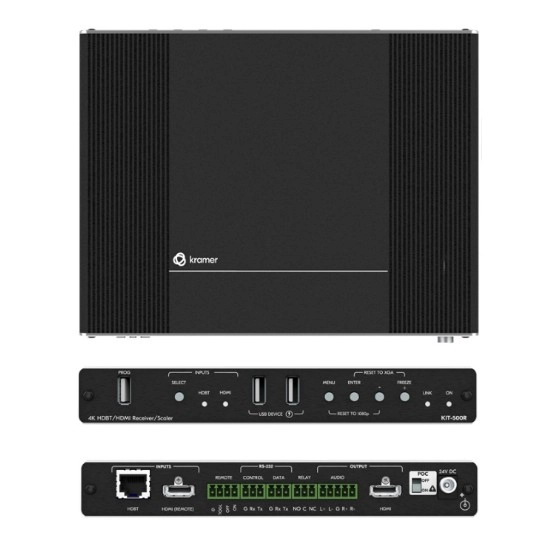

RECEIVER	INPUTS 1 HDBaseT: On an RJ–45 connector 1 HDMI: On a female HDMI connector OUTPUTS 1 HDMI: On a female HDMI connector 1 Balanced Stereo Audio: On a 5–pin terminal block connector PORTS 1 Control RS–232: On a 3–pin terminal block connector 1 Data RS–232: On a 3–pin terminal block connector 3 Remote Contact–Closure: On a 4 pin terminal block connector 1 Relay: On a 3–pin terminal block connector 2 USB (DEVICE): On USB 2.0 type A connectors 1 Program USB: On a USB–A connector for firmware upgrade Integrated USB Hubs: 1 ANALOG AUDIO Output Coupling: DC Max Input Signal Level: 3.5Vp–p/4.2dBu Max Output Signal Level: 10Vp–p/13dBu Frequency Response: 20Hz to 20kHz ±0.1dB THD+N (A–weighted): 76dB Output Impedance: 500Ω For Embedded Audio — Number of Supported Channels: 2CH Supported Audio Formats: LPCM
Video	Max Data Rate (Transmitter): USB–C and HDMI ports: 18Gbps Max Data Rate (Transmitter): HDBT port: 10.2Gbps Max Resolution (Receiver): HDMI port: 4K@60Hz (4:4:4) Max Resolution (Receiver): HDBT port: 4K@60Hz (4:2:0) HDMI Support: 4K60, CEC, xvYCC color Content Protection: HDCP 1.4 and 2.2 (KIT–500R) KIT-500R Output Resolutions: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz RB, 2560x1600@60Hz RB, 1920x1080@60Hz, 1280x720@60Hz, 2048x1080@50/60Hz, 2560x1440@60Hz RB, 720x480p@60Hz, 720x576p@50Hz, 1280x720p@50/60Hz, 1920x1080p@24/25/30/50/60Hz, 2560x1080p@50/60Hz, 2K@24/25/30/50/60Hz, 4K@24/25/30/50/60Hz
USB Features	DData Rate: USB 3.0 Ports: 5Gbps Data Rate: USB 2.0 over HDBT: Up to 127Mbps (out of max 480Mbps)
Extension Line	Up to 40m (130ft): At 4K@60Hz (4:2:0) Up to 70m (230ft): At full HD (1080p@60Hz) Compliance: HDBaseT 2.0
Extended RS-232	Baud Rate: 300 to 115200
Power	Source: 24V DC, 5A Combined Consumption of Both Units: 24V DC, 3.7A
Environmental Conditions	Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RHL non–condensing
Enclosure	Size: MegaTOOLS® Type: Aluminum Cooling: Convection ventilation
STANDARDS COMPLIANCE	Safety: CE Environmental: FCC, UCKA
Accessories	Included: 1 Power adapter, 2 power cords (EU and US), 8 rubber feet, 1 bracket set
Product Dimensions	21.40cm x 17.40cm x 4.00cm (8.43" x 6.85" x 1.57" ) W, D, H
Product Weight	1.7kg (3.8lbs) approx.
Shipping Dimensions	45.40cm x 48.00cm x 7.50cm (17.87" x 18.90" x 2.95" ) W, D, H
Shipping Weight	2.8kg (6.3lbs) approx.
