Name: [KRAMER] KDS-EN7
Brand: KRAMER
Price: 1724000 KRW
Availability: InStock

Home
Kramer
화상회의협업장치
AV over IP

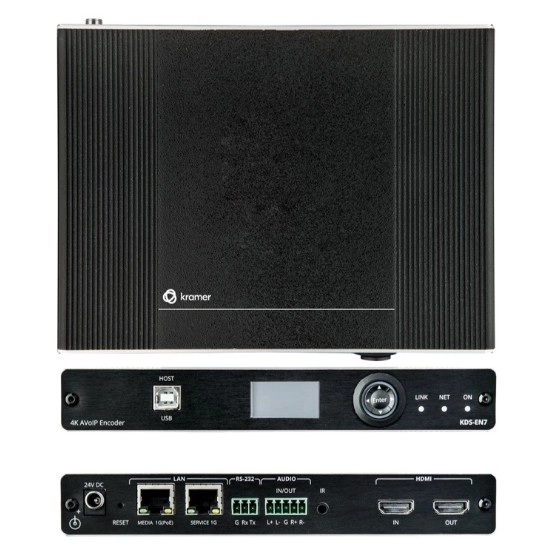

[KRAMER] KDS-EN7

1,724,000원

High–performance, highly–scalable, AVoIP Encoder for 4K over 1G network

Outstanding end–user experience
Ideal for large–scale deployments
Robust security
Simple planning and rollout

HDMI | Ethernet - RJ-45 | HDCP 2.2 compatible

구매하기 장바구니 0

장바구니

구매하기 구매하기

Inputs	1 HDMI: On a female HDMI connector
Outputs	1 HDMI: On a female HDMI connector
Ports	2 Ethernets: On RJ–45 connectors 1 Balanced Audio: On a 5–pin terminal block connector 1 RS-232: On a 3–pin terminal block connector 1 IR: On a 3.5mm TRS connector 1 USB Host: On a USB–B connector
USB Features	Integrated USB Hubs: 1–layer USB Hub when connecting to KDS–DEC7
Network	Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2 Unicast: Through RTSP (Real Time Streaming Protocol) Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
Video	Compression Standard: JPEG based, private stream Max Resolution: 4K@30Hz 4:4:4
Video Streaming	Compression Standard: JPEG2K based, proprietary stream Max Input Resolution: 4K@60hz (4:2:0) Max Output Resolution: 4K@30hz (4:4:4) Max End-to-End Resolution: 4K@30hz (4:4:4) Scaler: Yes End-to-End Latency: 33msec Switching Time: 1sec
Resolution	4096x2160@60Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz, 3840x2160@60Hz, 1600x900@60Hz, 1280x800@60Hz, 800x600@60Hz, 1920x1200@50Hz, 1440x900@60Hz, 1280x768@60Hz, 720x576@60Hz, 1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz, 1856x1392@60Hz, 1366x768@60Hz, 1224x768@70Hz, 640x480@60Hz, 1792x1344@60Hz, 1360x768@60Hz, 1152x864@70Hz, 640x400@85Hz, 1680x1050@60Hz, 1024x768@60Hz, 640x350@85Hz
Audio	Supported Formats: LPCM, Dolby, DTS LPCM: LPCM upto 7.1/24–bit/192kHz Dolby: Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0 DTS: DTS–HD Master AudioTM, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1
Security	HTTPS, 802.1x, OWASP–10, AES–128 encryption of AV streaming with changeable key
User Interface	Indicators: LINK, NET and ON LEDs, front panel LCD Display Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons
Power	PoE (Power over Ethernet): Operating voltage range 37V~57V, max power 13W Optional power supply: 24V DC, 5A
Environmental Conditions	Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing Humidity: 10% to 90%, non–condensing
Product Dimensions	18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H
Product Weight	0.7kg (1.5lbs) approx.
Shipping Dimensions	31.20cm x 17.90cm x 7.60cm (12.28" x 7.05" x 2.99" ) W, D, H
Shipping Weight	0.9kg (2.1lbs) approx.

Inputs	1 HDMI: On a female HDMI connector
Outputs	1 HDMI: On a female HDMI connector
Ports	2 Ethernets: On RJ–45 connectors 1 Balanced Audio: On a 5–pin terminal block connector 1 RS-232: On a 3–pin terminal block connector 1 IR: On a 3.5mm TRS connector 1 USB Host: On a USB–B connector
USB Features	Integrated USB Hubs: 1–layer USB Hub when connecting to KDS–DEC7
Network	Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2 Unicast: Through RTSP (Real Time Streaming Protocol) Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
Video	Compression Standard: JPEG based, private stream Max Resolution: 4K@30Hz 4:4:4
Video Streaming	Compression Standard: JPEG2K based, proprietary stream Max Input Resolution: 4K@60hz (4:2:0) Max Output Resolution: 4K@30hz (4:4:4) Max End-to-End Resolution: 4K@30hz (4:4:4) Scaler: Yes End-to-End Latency: 33msec Switching Time: 1sec
Resolution	4096x2160@60Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz, 3840x2160@60Hz, 1600x900@60Hz, 1280x800@60Hz, 800x600@60Hz, 1920x1200@50Hz, 1440x900@60Hz, 1280x768@60Hz, 720x576@60Hz, 1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz, 1856x1392@60Hz, 1366x768@60Hz, 1224x768@70Hz, 640x480@60Hz, 1792x1344@60Hz, 1360x768@60Hz, 1152x864@70Hz, 640x400@85Hz, 1680x1050@60Hz, 1024x768@60Hz, 640x350@85Hz
Audio	Supported Formats: LPCM, Dolby, DTS LPCM: LPCM upto 7.1/24–bit/192kHz Dolby: Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0 DTS: DTS–HD Master AudioTM, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1
Security	HTTPS, 802.1x, OWASP–10, AES–128 encryption of AV streaming with changeable key
User Interface	Indicators: LINK, NET and ON LEDs, front panel LCD Display Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons
Power	PoE (Power over Ethernet): Operating voltage range 37V~57V, max power 13W Optional power supply: 24V DC, 5A
Environmental Conditions	Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing Humidity: 10% to 90%, non–condensing
Product Dimensions	18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H
Product Weight	0.7kg (1.5lbs) approx.
Shipping Dimensions	31.20cm x 17.90cm x 7.60cm (12.28" x 7.05" x 2.99" ) W, D, H
Shipping Weight	0.9kg (2.1lbs) approx.
