[KRAMER] RC-308

1,441,000원

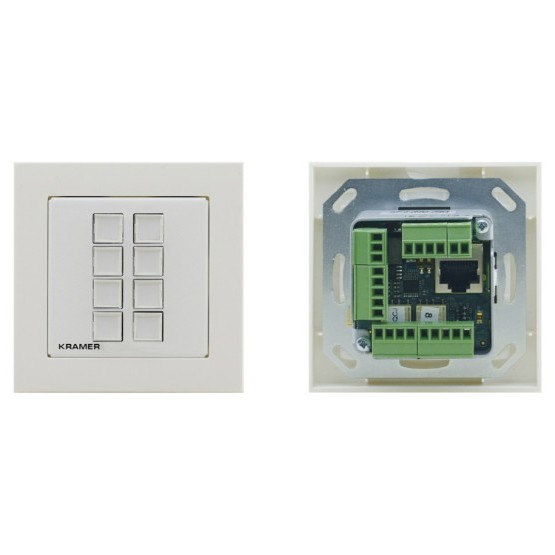

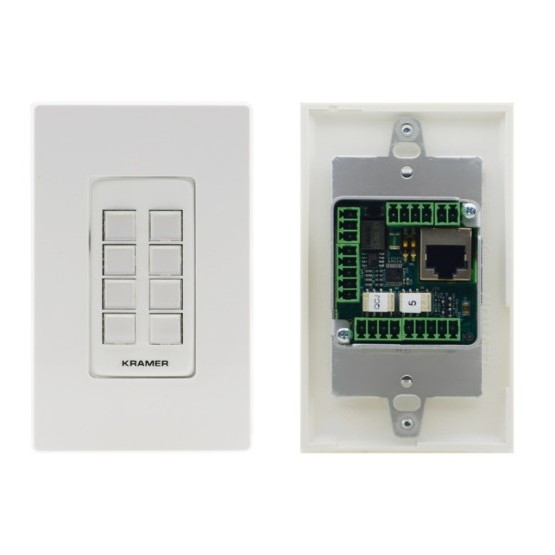

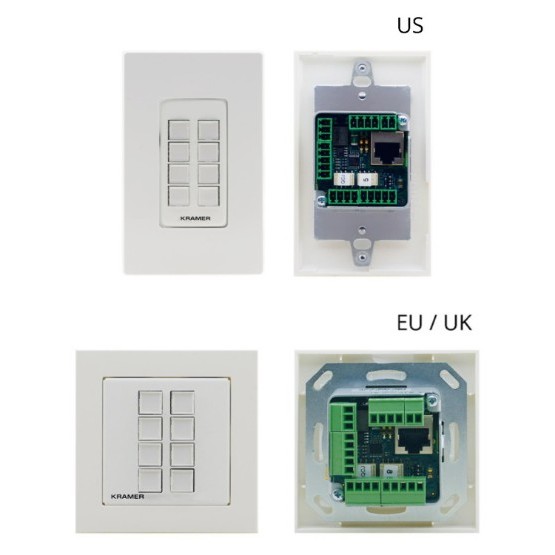

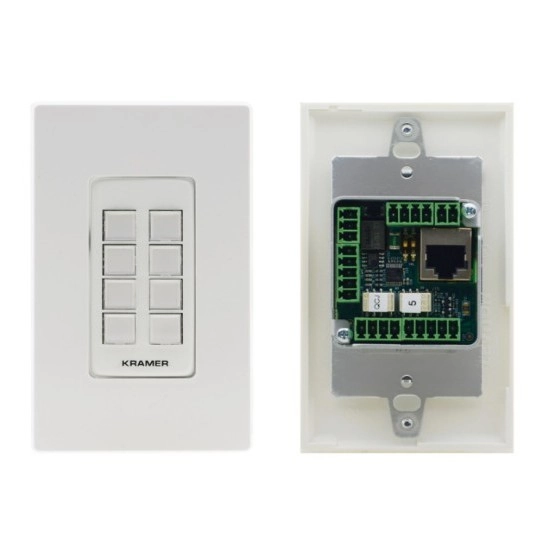

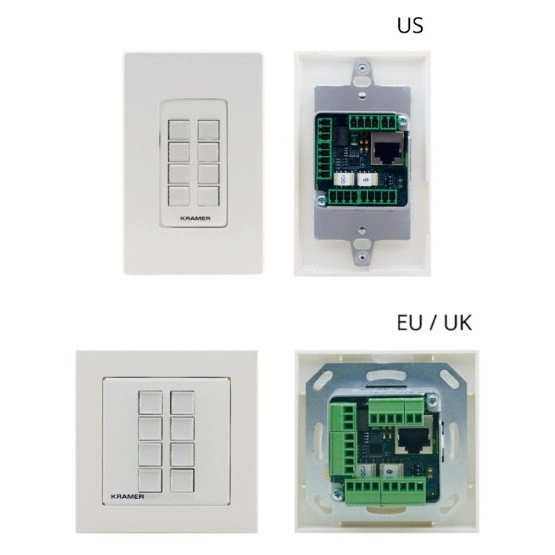

8–button PoE and I/O Control Keypad (EU, UK, US)

8 RGB–color, backlit buttons
PoE acceptor
Connectable to auxiliary KNET™ keypads
Supported by all Kramer control platforms
Ethernet - RJ-45

브랜드 KRAMER

배송 방법

택배 · 기본 무료 · 도서산간 배송비 popover

배송 안내

도서산간 지역은 추가비용 5000원(편도기준)이 발생합니다.

구매하기 장바구니 0

구매하기 구매하기

Inputs	1 IR Sensor: For IR learning
Outputs	2 IR: On 2–pin terminal block connectors 2 Relays: On 2–pin terminal block connectors (36V AC or DC, 2A, 60VAC maximum on non–inductive load)

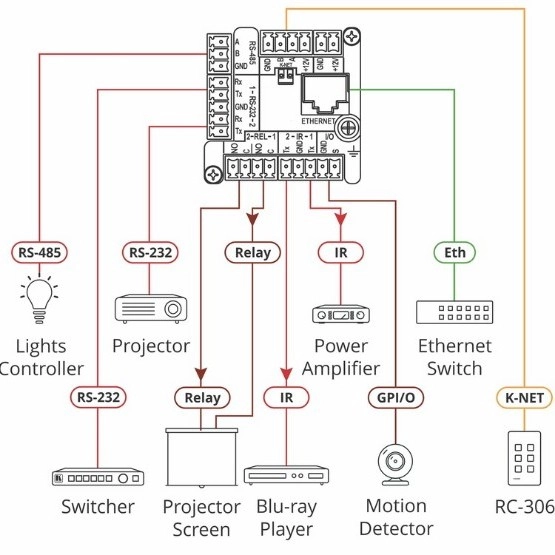

Ports	1 Ethernet: On an RJ–45 female connector for PoE, device configuration, control and firmware upgrade 2 RS-232: On 3–pin terminal block connectors 1 RS-485: On a 3–pin terminal block connector 1 K-NET: On a 4–pin terminal block connector 2 Relays: On 2–pin terminal block connectors (30V DC, 1A) 1 GPI/O: On a 2–pin terminal block connector 1 Mini USB: On a female mini USB–B connector for configuration and firmware upgrade
General	Default IP Settings: DHCP Enabled
Power	Source: PoE or 12V DC 2A power supply Consumption: 12V DC, 780mA
Environmental Conditions	Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RHL non–condensing
REGULATORY	Safety: CE, UL Environmental: RoHs, WEEE
Enclosure	Size: 1–Gang wall–plate Cooling: Convection ventilation
Accessories	Included with All Versions: Power adapter, tweezers for removing button caps, standard button label set Included with US-D Version: 2 US Frame sets and faceplates (1 in black and 1 in white) Included with European Version: 1 EU white frame, 1 UK white frame, 1 EU/UK white faceplate
Product Dimensions	EU, UK: 8.60cm x 4.70cm x 8.60cm (3.39" x 1.85" x 3.39" ) W, D, H US: 6.98cm x 4.70cm x 11.43cm (2.75" x 1.85" x 4.50" ) W, D, H
Product Weight	EU, UK: 0.1kg (0.2lbs) approx. US: 0.1kg (0.2lbs) approx.
Shipping Dimensions	UK: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H EU: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
Shipping Weight	UK: 0.4kg (0.8lbs) approx. EU: 0.4kg (0.8lbs) approx. US: 0.4kg (0.8lbs) approx.
