Name: [KRAMER] VSM-4x4X
Brand: KRAMER
Price: 10548000 KRW
Availability: InStock

Home
Kramer

[KRAMER] VSM-4x4X

10,548,000원

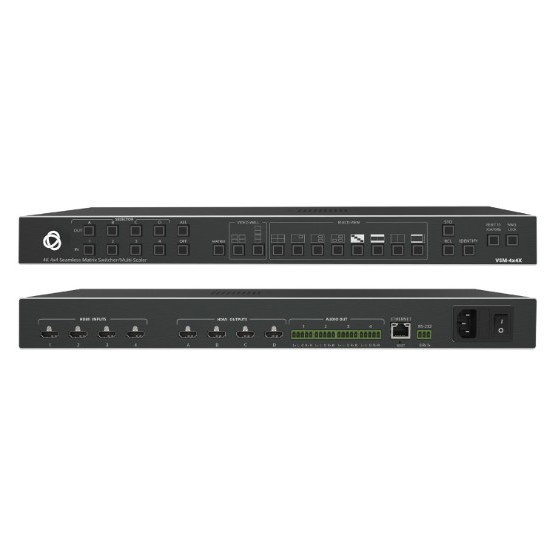

4x4 Matrix Switcher, Videowall & Multiviewer

Modes — Seamless 4X4 matrix, video wall, multi–viewer (PIP(s), P&P(s), quad, etc)
Bezel Correction — In video wall mode
Max Resolutions — 4k60 4:4:4
Built–in ProcAmp
Control — RS–232, Ethernet

HDMI | Ethernet - RJ-45

구매하기 장바구니 0

장바구니

구매하기 구매하기

Inputs	4 HDMI: On female HDMI connectors
Outputs	4 HDMI: On female HDMI connectors
Ports	4 Balanced Stereo Line Level: On 5–pin terminal block connectors 1 RS-232: On a 3–pin terminal block 1 Ethernet: On an RJ–45 female connector
Video	Max Bandwidth: 18Gbps (6Gbps per graphic channel) Max Resolution: 4K @60Hz (4:4:4) 24bpp resolution Compliance: HDMI 2.0 and HDCP 1.4 Latency: Up to 20ms
Controls	Front Panel: Output and input selector buttons, system set up buttons (matrix, video wall and multi–view), store and recall buttons, display identify button, reset button and panel lock button
Analog Audio	Max Level: 4.1Vrms Impedance: 500Ω Bandwidth: 20Hz — 20kHz Crosstalk: –114dB THD + N: 0.005% @1kHz at nominal level S/N Ratio: –89dB, 20Hz — 20kHz Coupling: DC
Power	Consumption: 100–240V AC, 98VA max Heat Dissipation: 55W (188BTU/hr)
Regulatory Compliance (Standards Compliance)	Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RHL non–condensing
Regulatory Compliance (Standards Compliance)	Safety: CE, FCC Environmental: RoHs, WEEE
Enclosure	Size: 19” 1U Type: Aluminum Cooling: Fan Ventilation
General	Net Dimensions (W, D, H): 43.6cm x 18.3 cm x 4.4cm Net Dimensions (W, D, H): (17.2" x 7.2" x 1.7") Shipping Dimensions (W, D, H): 55cm x 27.6cm x 10.7cm Shipping Dimensions (W, D, H): (21.6" x 10.9" x 4.2") Net Weight: 1.8 kg (4lbs) Shipping Weight: 2.9 kg (6.4lbs) approx
Accessories	Included: Power adapter cord
Product Weight	19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
Product Weight	1.9kg (4.1lbs) approx.
Shipping Dimensions	55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H
Shipping Weight	2.9kg (6.4lbs) approx.

Inputs	4 HDMI: On female HDMI connectors
Outputs	4 HDMI: On female HDMI connectors
Ports	4 Balanced Stereo Line Level: On 5–pin terminal block connectors 1 RS-232: On a 3–pin terminal block 1 Ethernet: On an RJ–45 female connector
Video	Max Bandwidth: 18Gbps (6Gbps per graphic channel) Max Resolution: 4K @60Hz (4:4:4) 24bpp resolution Compliance: HDMI 2.0 and HDCP 1.4 Latency: Up to 20ms
Controls	Front Panel: Output and input selector buttons, system set up buttons (matrix, video wall and multi–view), store and recall buttons, display identify button, reset button and panel lock button
Analog Audio	Max Level: 4.1Vrms Impedance: 500Ω Bandwidth: 20Hz — 20kHz Crosstalk: –114dB THD + N: 0.005% @1kHz at nominal level S/N Ratio: –89dB, 20Hz — 20kHz Coupling: DC
Power	Consumption: 100–240V AC, 98VA max Heat Dissipation: 55W (188BTU/hr)
Regulatory Compliance (Standards Compliance)	Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RHL non–condensing
Regulatory Compliance (Standards Compliance)	Safety: CE, FCC Environmental: RoHs, WEEE
Enclosure	Size: 19” 1U Type: Aluminum Cooling: Fan Ventilation
General	Net Dimensions (W, D, H): 43.6cm x 18.3 cm x 4.4cm Net Dimensions (W, D, H): (17.2" x 7.2" x 1.7") Shipping Dimensions (W, D, H): 55cm x 27.6cm x 10.7cm Shipping Dimensions (W, D, H): (21.6" x 10.9" x 4.2") Net Weight: 1.8 kg (4lbs) Shipping Weight: 2.9 kg (6.4lbs) approx
Accessories	Included: Power adapter cord
Product Weight	19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
Product Weight	1.9kg (4.1lbs) approx.
Shipping Dimensions	55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H
Shipping Weight	2.9kg (6.4lbs) approx.
